DS-2CD2720F-I(S)

Print

Key Features



  • Up to 2 megapixel (1920 × 1080) resolution, real-time output
  • Support ROI function
  • Standard video compression with high compression ratio
  • Progressive scan CMOS, capture motion video without incised margin
  • Support dual stream, and the sub-stream for mobile surveillance
  • High-performance and long service life Infrared LED, Approx. 10 to 20 meters IR range
  • Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
  • IR cut filter with auto switch
  • PoE (Power over Ethernet)
  • Ingress Protection level: IP66
  • Electronic shutter for different surveillance environments l
  • Impact Protection: IEC60068-2-75 test, Eh, 20J; EN50102, up to IK10 l
  • Other functions: reset, heartbeat, mirror, etc.
Description

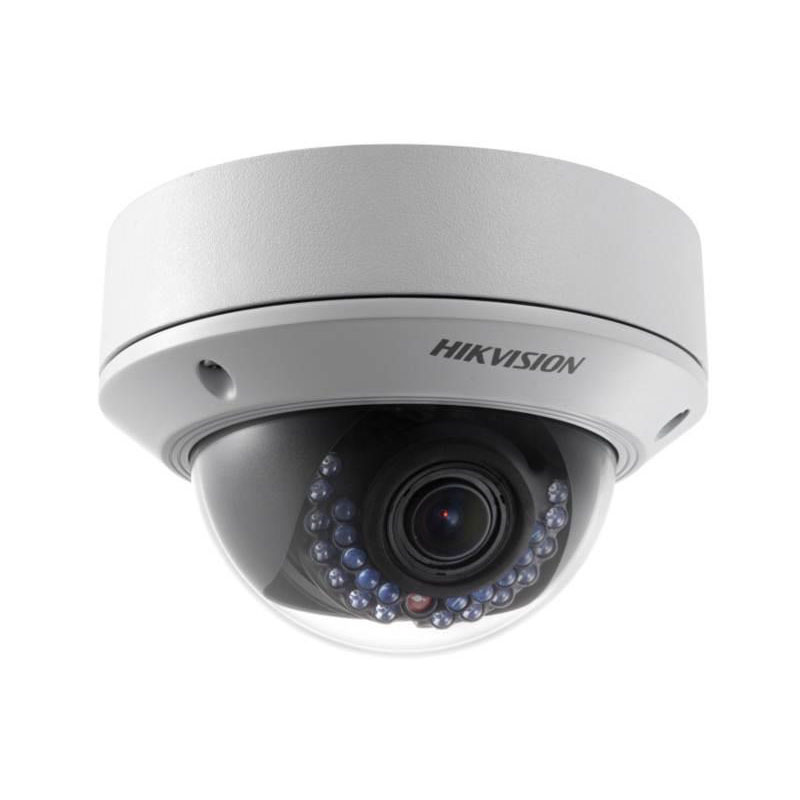

DS-2CD2720F-I(S)

2 Megapixel CMOS Vandal-proof Network Dome Camera

Camera



Image Sensor

1/3" Progressive Scan CMOS

Min. Illumination

0.01lux @(F1.2,AGC ON) ,0 Lux with IR
0.014lux @(F1.4,AGC ON), 0 Lux with IR

Shutter Speed

1/25(1/30) s to 1/100,000 s

Lens

2.8 - 12 mm @ F1.4,Angle of view: 113°-33.8°

Angle Adjustment

Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°

Lens Mount

Φ14

Day &Night

IR cut filter with auto switch

Digital Noise
Reduction

3D DNR

Wide Dynamic Range

Digital WDR

Compression Standard



Video Compression

H.264/ MJPEG

H.264 Compression
Type

BaseLine Profile/Main Profile

Video Bit Rate

32 Kbps – 8 Mbps

Audio Compression

G.711/G.726/MP2L2

Audio Bit Rate

64Kbps(G.711) / 16Kbps(G.726)/ 32~128Kbps(MP2L2)

Dual Stream

Yes




Max. Resolution

1920×1080

Frame Rate

50Hz: 25fps(1920 × 1080), 25fps (1280 × 960), 25fps (1280 × 720)
60Hz: 30fps(1920 × 1080), 30fps (1280 × 960), 30fps (1280 × 720)

Image Settings

Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser

Backlight compensation

Yes, zone optional

ROI

Yes, up to 4 configurable areas

Network



Network Storage

NAS

Alarm Trigger

Motion detection, Tampering alarm, Network disconnect, IP address confict, Storage full , Storage error

Protocols

TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour

Security

User Authentication, Watermark

Standard

ONVIF, PSIA, CGI, ISAPI

Interface



Communication
Interface

1 RJ45 10M/100M Ethernet interface

On-board storage

Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB

General



Operating Conditions

-30 °C – 60 °C (-22 °F – 140 °F) Humidity 95% or less (non-condensing)

Power Supply

12 V DC ± 10%
PoE (802.3af)

Power Consumption

Max. 5.5 W

Ingress Protection level

IP66

Impact Protection

IEC60068-275Eh, 20J; EN50102, up to IK10

IR Range

30 meters

Dimensions

Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)

Weight

1000g
