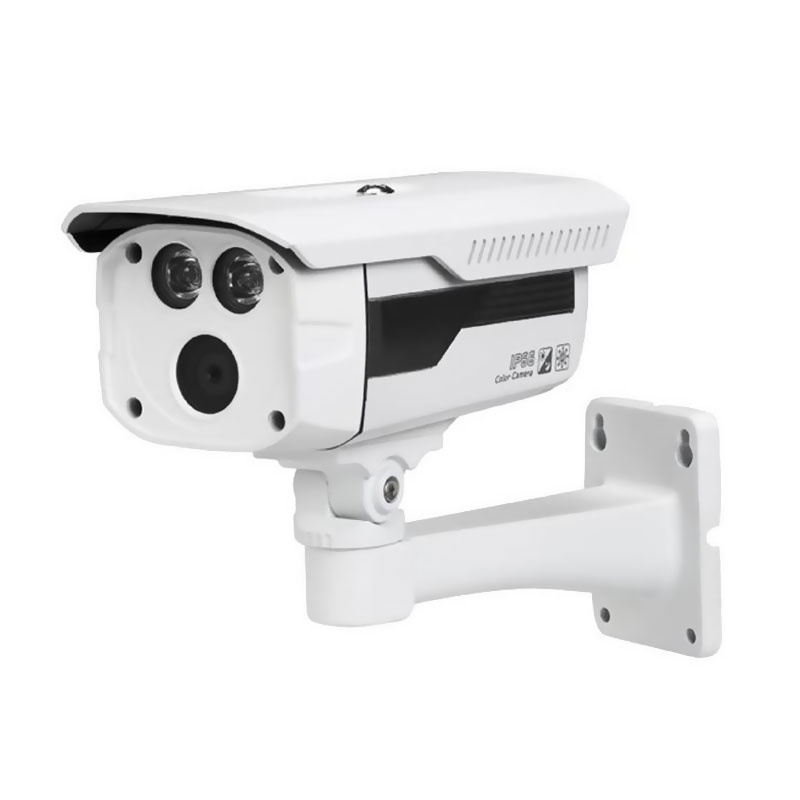

HAC-HFW2200D(-B)

Print

Key Features



  • 1/3" 2Megapixel CMOS
  • 25/30fps@1080P, 25/30/50/60fps@720P
  • High speed, long distance real-time transmission
  • HD and standard definition switchable
  • OSD Menu, control over coaxial cable
  • Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
  • 8mm fixed lens (3.6 mm, 6mm, 12mm, 16mm optional)
  • Max. IR LEDs length 50m, Smart IR
  • IP66, DC12V
  • Default with bracket (HFW2200D-B)
Description

Model

DH-HAC-HFW2
200DP

DH-HAC-HFW2
200DN

DH-HAC-HFW2
200DP-B

DH-HAC-HFW2
200DN-B

Camera



Image Sensor

1/3" 2Megapixel CMOS

Effective Pixels

1920(H)×1080(V)

Electronic Shutter

1/3(s)~1/100,000s

Video Frame Rate

25/30/50/60fps@720P; 25/30fps@1080P

Synchronization

Internal

Min. Illumination

[email protected] (AGC ON), 0Lux IR LED on

Video Output

1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)

Camera Features



Max. IR LEDs Length

50m, Smart IR

Day/Night

Auto(ICR) / Color / B/W

Noise Reduction

2D/3D

OSD Menu

Support

Lens



Focal length

8mm fixed lens (3.6mm, 6mm,12mm,16mm optional)

Mount Type

M12

General



Power Supply

DC12V±10%

Power Consumption

Max 8W

Working Environment

-30°C~+60°C / Less than 95%RH (no condensation)

Transmission Distance

Over 300m via 75-3 coaxial cable

Ingress Protection

IP66

Dimensions(W×D×H)

200.2mm×89.1mm×80.4mm

200.2mm×89.1mm×161.2mm

Weight

0.45Kg

0.58Kg

Others

N/A

Default: bracket included
