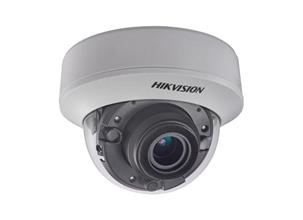

DS-2CE56D8T-ITZ

Print

Key features



  • 2.0 Megapixel high-performance CMOS
  • Analog HD output, up to 1080P resolution
  • 2.8-12mm motorized vari-focal lens
  • True Day/Night
  • OSD menu, DNR, Smart IR
  • True WDR, up to 120dB
  • EXIR 2.0, up to 20 m IR distance
  • Up the Coax(HIKVISION-C)
  • PoC.at
Description
Camera
Image Sensor:   2MP CMOS Image Sensor
Signal System:   PAL/NTSC
Effective Pixels:   1920(H)*1080(V)
Min. Illumination:   Color: 0.005 Lux @ (F1.8, AGC ON), 0 Lux with IR
Shutter Time:   1/25(1/30) s to 1/50,000 s
Lens:   2.8 mm to 12 mm motorized vari-focal lens
Lens Mount:   φ14
Adjustment Range:   Pan: 0° to 340°, Tilt:0° to 75°, Rotate: 0° to 355°
Day& Night:   IR cut filter with auto switch
Wide Dynamic Range:   120dB
Video Frame Rate:   PAL: 1080p@25fps
NTSC: 1080p@30fps
HD Video Output:   1 Analog HD output
Synchronization:   Internal Synchronization
Up the Coax:   Support
Menu
D/N Mode:   Auto / Color / B/W
Auto White Balance:   Auto trace WB1/Auto trace WB2/Manual/Auto Control
Motion Detection:   4 programmable motion areas
AGC:   Support
Language:   English/Chinese
General
Operating Conditions:   -40 °C - 60 °C (-40 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply:   12 VDC±25%/PoC.af
Power Consumption:   Max. 7 W
IR Range:   Up to 20m
Communication :   Up the coax
Protocol: HIKVISION-C(Coaxitron)
Dimension:   Φ 136 mm × 102 mm (Φ 5.35" × 4.02")
Weight:   Approx. 600 g (1.32 lb.)
